| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 30,000 pcs/month |
| Series Name: | PP Melt Blown Filter Element | Skeleton: | PP |
|---|---|---|---|
| The Inside Diameter Of: | Ø28 Ø30 | Length: | 10″20″30″40″ |
| Filter Material: | PP | Precision: | 1-100μm |
| Outer Diameter: | Ø60 Ø63 | Sealing Material: | Silica Gel, Oil Resistant Nitrile, Fluorine Rubber, |
| Operating Temperature: | ≤80℃ | Pressure Drop (Mpa): | 0.2 |
| High Light: | 40 Inch String Wound Sediment Filter,50um string wound water filter cartridges,50um String Wound Sediment Filter |
||

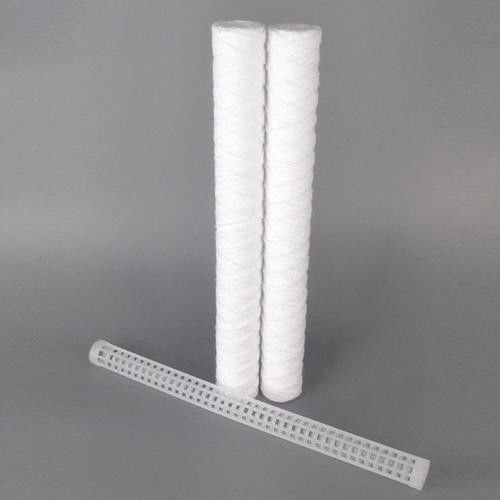

40 Inch Pp Yarn String Wound Filter Cartridge
Product Description:
The thread-wound water filter element is made of textile fiber thread (polypropylene thread, absorbent cotton thread, glass fiber thread) which is wound on polypropylene or stainless steel skeleton net according to various specific winding methods. It controls the density and tightness of the yarn during winding to make filter cores with different filtering accuracy.
Product parameter:
| Series name | Outer diameter | inside diameter | Length | Filter material | Skeleton | Precision | Sealing material | Operating temperature | Pressure drop (Mpa) |
|
PP melt blown filter element |
Ø60 Ø63 |
Ø28 Ø30 |
10″20″30″40″ | PP | PP | 1-100μm | ≤80℃ | 0.2 | |
| Microporous pleated filter element | Ø68 |
Ø28 Ø30 |
10″20″30″40″ |
PP, PP+ PTFE film, PP+PES film, |
PP, stainless steel |
0.1-50μm |
Silicone, oil-resistant nitrile, fluorine rubber, |
≤80℃ | 1.25 |
|
PALL high flow folding filter element |
Ø160 | Ø89 | 20″30″40″60″ | PP+ film | PP | 1-150μm | ≤80℃ | 0.42 | |
|
3M high flow filter element |
Ø160 | Ø77 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 0.42 | |
|
Parker high flow folding filter |
Ø152 | Ø100 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 3.4 | |
|
Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours |
|||||||||
Pictures:
Features and Benefits:
It has the advantages of high pressure resistance, small pressure drop, strong dirt holding capacity, and good chemical compatibility. It can be used to filter particles and impurities in various water, oil, and chemical liquids.
Application:
1. Pre-Filter For Drinking Water Treatment
2. Water-based solutions
3. Food And Beverage Industry
4. Solar heating industry
5. Pharmaceuticals Industry
6. Petrochemical industry
