| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Model Number: | XY-3266 |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 30,000 pcs/month |
| Specification Size (mm): | 323*215*660 | Quantitative Filter Material (g/m²): | 260 |
|---|---|---|---|
| Filter Area (m²): | 6.8 | Handling Air Volume（m³/h）: | 450-800 |
| Filtration Efficiency（≥0.2-10μm）: | 99.9% | Installation Method: | Screw Hoisting,Quick Release Chuck |
| High Light: | 99.9% Dust Collector Cartridge Filters,700m3/h air purifier dust collector,700m3/h Dust Collector Cartridge Filters |
||

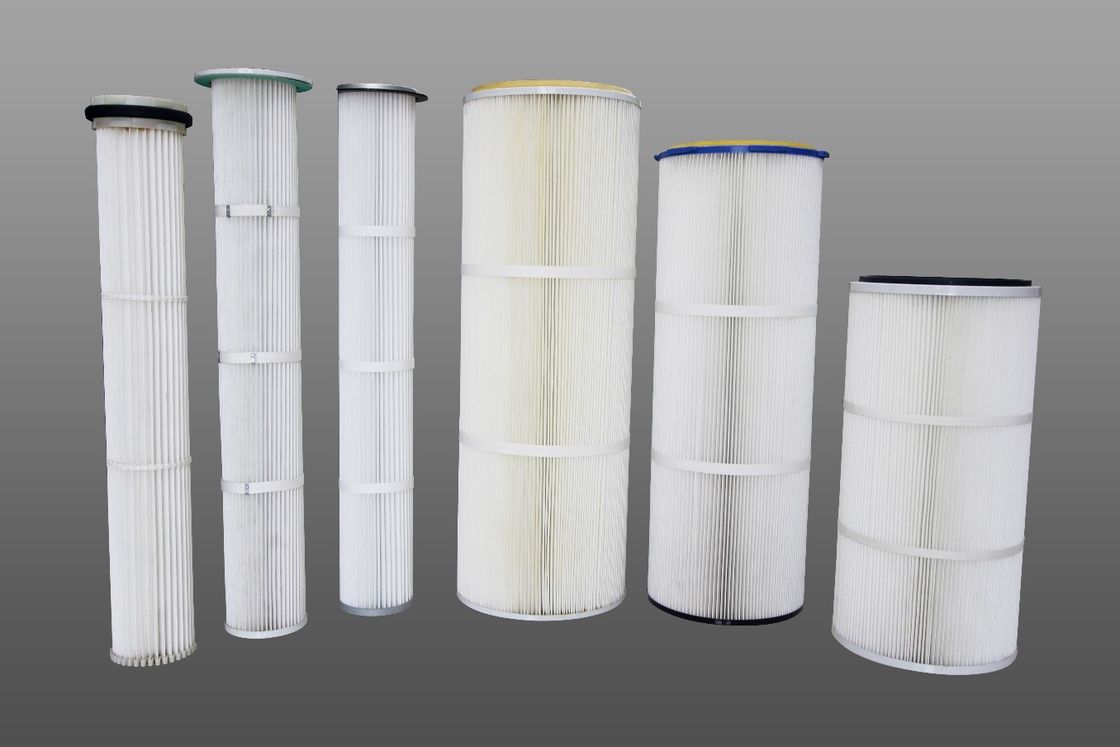

The Company Specializes In The Production Of Various Specifications And Models Of Cylindrical Dust Filter Elements
Product Description:
The company specializes in the production of various specifications and models of cylindrical dust filter elements. The product structure is simple and consists of upper and lower end caps, inner support protection nets (some products have inner and outer support protection nets) and filter materials. The core component of the product is a filter material, which is mainly divided into: domestic ordinary polyester fiber non-woven fabric, anti-static non-woven fabric, PTFE coated non-woven fabric, high temperature resistant flame-retardant non-woven fabric, Japanese imported Toray non-woven fabric (anti-static Electrostatic, film), American Donaldson company Tetratex brand film filter material.
Product parameter:
| Product number | Specification size (mm) | Quantitative filter material (g/m²) | Filter area (m²) | Handling air volume | Filtration efficiency | Installation method |
| (m³/h) | (≥0.2-10μm) | |||||
| XY-3266 | 323*215*660 | 260 | 6.8 | 450-800 | 99.90% | Screw hoisting, |
| Quick release chuck | ||||||
| XY-32100 | 323*215*1000 | 260 | 12 | 700-1200 | 99.90% | |
| XY-120系列 | Ø120*900 | 260 | 0.81 | 150-300 | 99.90% | Flower board installation |
| Ø120*1000 | 260 | 0.9 | 180-320 | 99.90% | Flower board installation | |
| XY-160系列 | Ø160*2400 | 260 | 7.68 | 360-720 | 99.90% | Flower board installation |
| Ø160*3000 | 260 | 9.6 | 1140-2040 | 99.90% | Flower board installation | |
| XY-200系列 | Ø200*800 | 260 | 2.56 | 300-550 | 99.90% | Flower plate mouth hoisting |
| Ø200*1000 | 260 | 3.2 | 380-680 | 99.90% | Flower plate mouth hoisting | |
| Other standard specifications and various non-standard specifications can be customized | ||||||
| Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours | ||||||
Features:
The dust collector cartridge can be installed in various forms. The quick-release six-lug chuck filter cartridge has simple structure, convenient installation and disassembly, and good sealing performance. The metal end cap hanging type filter cartridge has better strength, and will not be deformed or detached after repeated spraying and cleaning. easy installation.
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
