| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Model Number: | DH3290 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 3 days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 pieces/month |

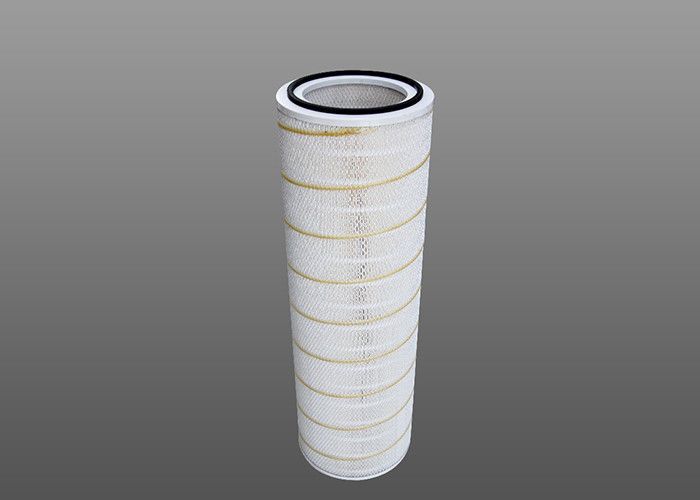

| Product Name: | Self-cleaning Air Filter Cartridge | Specification Model: | DH3290 |
|---|---|---|---|
| Dimensions (Mm) (Outer Diameter×Inner Diameter×Height): | Ø323×Ø215×900 | Filter Area (M²): | ≥23 |
| Filter Accuracy (μM): | ≥2 | Filter Level: | F9 |
| Rated Air Flow (M³/Min): | 18 | Initial Resistance (Pa): | ≤150 |
| High Light: | DH3290 Industrial Air Filter Cartridges,23 m2 air filter element,Rotary Industrial Air Filter Cartridges |
||
Rotary Filter Element Of Screw Air Compressor Oil Filter
Product Description:
Straight cylinder with cone structure is the standard matching form for imported gas turbines. The filter area is larger and the rated air volume is larger. Thickened metal end caps and protective nets are stronger, and the surface spray treatment process is not only beautiful but also corrosion-resistant, which improves the service life of the product
Product parameter:
|
product name
|
Specification model
|
Dimensions (mm)
(Outer diameter×inner diameter×height)
|
Filter area (m²)
|
Filter accuracy (μm)
|
Filter level
|
Rated air flow
(M³/min)
|
Initial resistance (Pa) |
|
Self-cleaning air filter cartridge |
DH3266 | Ø323×Ø215×660 | ≥17 | ≥2 | F9 | 13 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3270 | Ø323×Ø215×700 | ≥18 | ≥2 | F9 | 14 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3290 | Ø323×Ø215×900 | ≥23 | ≥2 | F9 | 18 | ≤150 |
|
Self-cleaning air filter cartridge |
DH32100 | Ø323×Ø215×1000 | ≥26 | ≥2 | F9 | 20 | ≤150 |
⑴. Inner and net support protection net-the strength of the joint of the spiral bite process is greatly improved, which increases the support strength and ensures that the filter cartridge does not deform when the pressure of the filter device is too high.
⑵. Center hole-the screw mounting center hole adds a reducing gasket, which makes the installation more convenient and quick, and improves the disadvantages of unsealed large holes and inconvenient installation of small holes.
⑶. Sealing ring-high elastic polyurethane sealing ring has good elasticity and aging resistance. It adopts the process of integral molding with the end cover to make the bonding stronger and the appearance more beautiful. The double triangle seal ring design further guarantees the effectiveness of the seal.
FAQ:
Q1. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q3.: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
