| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 3 days |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 units per month |
| Dimensions (W×H×D) (mm): | 595×595×46 | Rated Air Volume (m3/h): | 2500 |
|---|---|---|---|
| Filter Area(m2): | 0．95 | Dust Holding Capacity (g): | 170 |
| Initial Resistance (Pa): | 45 | Final Resistance （Pa）: | 100-200 |
| High Light: | G4 Pleated Panel Filters,G4 primary air filter,2500m3/h Pleated Panel Filters |
||

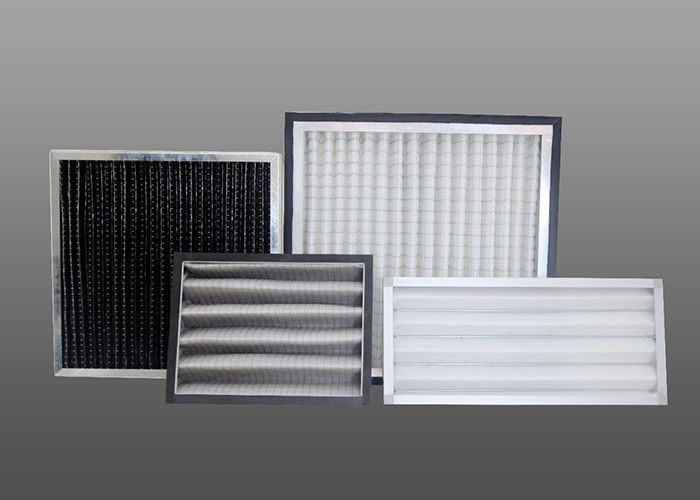

Aluminum Alloy Profile Folding Panel Filter
Product Description:
The pleated panel filter is made of aluminum alloy profiles and galvanized sheets. The filter material is made of high-quality polyester synthetic fiber, stainless steel metal mesh, activated carbon fiber, glass fiber, chemical fiber filter paper and other materials, and the inside and outside are made of metal skeleton or metal grid. Protective support, compact overall structure, light weight, easy installation and disassembly.
Product parameter:
|
Dimensions (W×H×D) (mm) |
Rated air volume (m3/h) |
Filter area(m2) |
Dust holding capacity (g) |
Initial resistance (Pa) |
Final resistance (Pa) |
Filtration efficiency(0.3μm) |
|
595×595×21 |
1700 |
0．64 |
115 |
45 |
100-200 |
G1-G4 |
|
595×495×21 |
1400 |
0．53 |
95 |
45 |
100-200 |
|
|
295×295×21 |
400 |
0．16 |
25 |
45 |
100-200 |
|
|
595×595×46 |
2500 |
0．95 |
170 |
45 |
100-200 |
|
|
595×495×46 |
2100 |
0．78 |
140 |
45 |
100-200 |
|
|
295×595×46 |
1200 |
0．46 |
80 |
45 |
100-200 |
|
|
295×495×46 |
1000 |
0．38 |
65 |
45 |
100-200 |
|
|
295×295×46 |
600 |
0．24 |
40 |
45 |
100-200 |
|
|
Minimum order quantity: 100 pcs. Supply capacity: 10,000 pcs/month. Delivery time: 3 days |
||||||
Pleated panel filters are mainly used in:
It can be widely used in pre-filter system for clean rooms, HEPA air filters, air compressors, central air-conditioning fresh air handling unit and ventilation systems, and computer rooms dedicated constant temperature and humidity air conditioning unit.
Item Features:
The air inlet surface is fluffy and the outlet cover is tight. While ensuring efficiency, it provides a large dust holding capacity and a reasonable filter element pleat design, which increases the effective filter area, while reducing resistance and increasing dust holding capacity.
FAQ:
Q1. Are you a manufacturer?
Yes, we are a high-tech enterprise which with 20 years experience in developing and manufacturing various filters and purification equipments.
Q5. What's the terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balancing.
Q6. What's your terms of delivery?
A: (1) EXW (2) FOB (3)CFR (4)CIF.
Q7. How about your delivery time?
A: Generally, under MOQ quantity take 7-15 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.
