| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 pcs/month |
| Size (mm): | 287*592*550 | Number Of Bags: | 3 |
|---|---|---|---|
| Filter Area (m²): | 2.80 | Rated Air Volume (m³/h): | 1700 |
| Initial Resistance (Pa): | 100 | Final Resistance (Pa): | 400 |
| High Light: | 85% Efficiency Pocket Air Filters,100Pa industrial air filter,ODM F7 Pocket Air Filters |
||

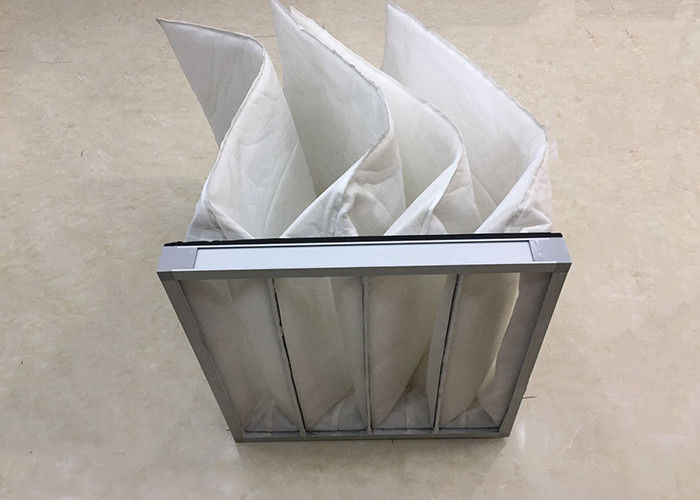

Pocket Air Filters Have A Long Service Life
Product Description:
The connection of each filter bag is processed by the riveting process, and the connection is tight and firm to avoid air leakage and dust leakage caused by falling off between the filter bags. The surface is decorated with aluminum buckles, which has a beautiful appearance and prevents dust accumulation at the joint.
Product parameter:
|
Size (mm) |
Number of bags |
Filter area (m²) |
Rated air volume (m³/h) |
Efficiency class |
Initial resistance (Pa) |
Final resistance (Pa) |
|
287*592*550 |
3 |
1.86 |
1700 |
35%(G4) |
15 |
350 |
|
592*592*550 |
5 |
3.12 |
3400 |
20 |
||
|
592*592*600 |
6 |
3.78 |
3400 |
20 |
||
|
287*592*550 |
3 |
2.12 |
1700 |
45%(F5) |
20 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
30 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
30 |
||
|
287*592*550 |
3 |
2.12 |
1700 |
65%(F6) |
45 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
80 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
80 |
||
|
287*592*550 |
3 |
2.80 |
1700 |
85%(F7) |
100 |
400 |
|
592*592*550 |
5 |
4.78 |
3400 |
125 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
125 |
||
|
287*592*550 |
3 |
2.80 |
1700 |
95%(F8) |
110 |
450 |
|
592*592*550 |
5 |
4.78 |
3400 |
130 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
130 |
||
|
Minimum order quantity: 100 pcs. Supply capacity: 10,000 pcs/month. Delivery time: 24 hours |
||||||
Features:
Each filter bag is made of ultra-fine synthetic fibers in a special weave process to avoid the discomfort that traditional glass fiber material may cause to the human body. The filter media contains electrostatic fibers, which are particularly excellent in the filtration of sub-micron dust particles. Therefore, the bag filter has the characteristics of high dust capture rate, high air permeability, and long service life.
Application:
Pre-filtration of air conditioning and ventilation systems to avoid ash pollution inside the system
Pre-filtration of large air compressor
Clean room centralized ventilation and air conditioning system and return air filtration to extend the service life of the high efficiency filter in the rear section
FAQ:
Q: Can the product be customized?
A:Yes, both the product and the packaging can be customized.
Q: How to pay?
A:Our company accepts various ways of payment, such as T/T , Paypal, Western Union etc.
Q: How long is the order lead time?
A:It depends on the order quantity. Usually it takes about 7 to 10 days for sample order and about 15-30 days for bulk order.
Q: What's your after-sales service?
A:Free online Technology Services 24h hours.
