| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 3 days |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 units per month |
| Dimensions (W×H×D) (mm): | 595×595×21 | Rated Air Volume (m3/h): | 1400 |
|---|---|---|---|
| Filter Area(m2): | 0.53 | Dust Holding Capacity (g): | 95 |
| Initial Resistance (Pa): | 45 | Final Resistance （Pa）: | 100-200 |
| High Light: | G1 Pleated Panel Filters,G1 disposable panel filters,100Pa Pleated Panel Filters |
||

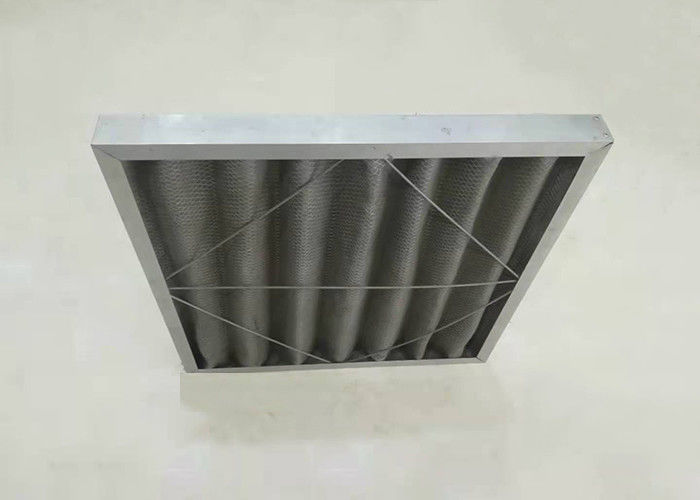

Corrosion - Resistant And High - Temperature Folding Panel Filter
Product Description:
Filter media: The filter media is closely combined with the protection grid and processed into a contour, equal spacing filter pleat layer by special process, allowing the air to pass freely and evenly, so that the dust can be uniformly adsorbed on the entire media, thereby achieving high dust holding capacity.
Product parameter:
|
Dimensions (W×H×D) (mm) |
Rated air volume (m3/h) |
Filter area(m2) |
Dust holding capacity (g) |
Initial resistance (Pa) |
Final resistance (Pa) |
Filtration efficiency(0.3μm) |
|
595×595×21 |
1700 |
0．64 |
115 |
45 |
100-200 |
G1-G4 |
|
595×495×21 |
1400 |
0．53 |
95 |
45 |
100-200 |
|
|
295×295×21 |
400 |
0．16 |
25 |
45 |
100-200 |
|
|
595×595×46 |
2500 |
0．95 |
170 |
45 |
100-200 |
|
|
595×495×46 |
2100 |
0．78 |
140 |
45 |
100-200 |
|
|
295×595×46 |
1200 |
0．46 |
80 |
45 |
100-200 |
|
|
295×495×46 |
1000 |
0．38 |
65 |
45 |
100-200 |
|
|
295×295×46 |
600 |
0．24 |
40 |
45 |
100-200 |
|
|
Minimum order quantity: 100 pcs. Supply capacity: 10,000 pcs/month. Delivery time: 3 days |
||||||
Item Features:
It can be widely used in pre-filter system for clean rooms, HEPA air filters, air compressors, central air-conditioning fresh air handling unit and ventilation systems, and computer rooms dedicated constant temperature and humidity air conditioning unit.
FAQ:
1.Is Customized filter available?
Yes,please offer your required specifications and drawing
2.Can I get you products with our logo and design?
Yes, you can. Most of our products can be customized according to your requirements.
3.How can we get the quotation of filter cartridges ?
Please let us know the specifications, such as the materials, length, macron, apply in which industry etc.
4.Do you Accept OEM service?
YES!
5. Would it be possible for us to visit you factory?
Sure we are very welcome you at any time!
ent,compressor-turbine unit etc.
