| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Model Number: | DH3270 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 3 days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 pieces/month |
| Product Name: | Self-cleaning Air Filter Cartridge | Specification Model: | DH3270 |
|---|---|---|---|
| Dimensions (Mm) (Outer Diameter×Inner Diameter×Height): | Ø323×Ø215×700 | Filter Area (M²): | ≥18 |
| Filter Accuracy (μM): | ≥2 | Filter Level: | F9 |
| Rated Air Flow (M³/Min): | 14 | Initial Resistance (Pa): | ≤150 |
| High Light: | DH3270 Industrial Air Filter Cartridges,700mm industrial air cleaner,700mm Industrial Air Filter Cartridges |
||

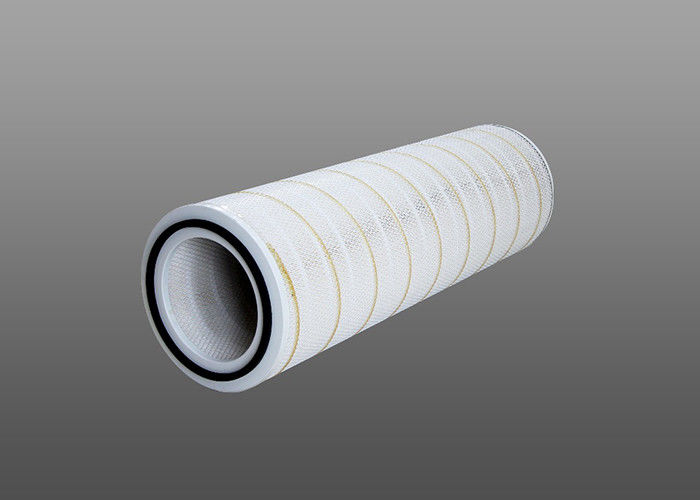

High Quality Diesel Generator Air Filter Cartridge Air Filter Element
Product Description:
The company specializes in the production of various specifications and models of self-cleaning air filter elements and air filter cartridges for air separation equipment such as air compressors, gas turbines, and oxygen generators. The product adopts the high-quality wood pulp filter paper of the American HV company; the end cover and the inner and outer support protection net are processed and formed by the fingerprint-resistant sheet; the two-component environmentally friendly adhesive ensures that the end cover is firmly bonded and does not fall off; the high-elastic polyurethane sealing ring has high elasticity and anti-aging .
Product parameter:
|
product name
|
Specification model
|
Dimensions (mm)
(Outer diameter×inner diameter×height)
|
Filter area (m²)
|
Filter accuracy (μm)
|
Filter level
|
Rated air flow
(M³/min)
|
Initial resistance (Pa) |
|
Self-cleaning air filter cartridge |
DH3266 | Ø323×Ø215×660 | ≥17 | ≥2 | F9 | 13 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3270 | Ø323×Ø215×700 | ≥18 | ≥2 | F9 | 14 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3290 | Ø323×Ø215×900 | ≥23 | ≥2 | F9 | 18 | ≤150 |
|
Self-cleaning air filter cartridge |
DH32100 | Ø323×Ø215×1000 | ≥26 | ≥2 | F9 | 20 | ≤150 |
Features:
The product is mainly used in the air filtration at the entrance of large air separation equipment. It has the characteristics of high filtration accuracy, good filtration efficiency, large dust holding capacity and long service life. It is widely used in petroleum, chemical, steel, power plant and other industries.
Applications:
1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust.
2 Marktets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
4. Available for collectors: FT dust collector, Torit DFT
5. Substitute: Donaldson, Nodic, BHA
