| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 pcs/month |
| Size (mm): | 287*592*550 | Number Of Bags: | 3 |
|---|---|---|---|
| Filter Area (m²): | 2.12 | Rated Air Volume (m³/h): | 1700 |
| Initial Resistance (Pa): | 15 | Final Resistance (Pa): | 350 |
| High Light: | 45% Pocket Air Filters,45% pocket bag filters,1700m3/h Pocket Air Filters |
||

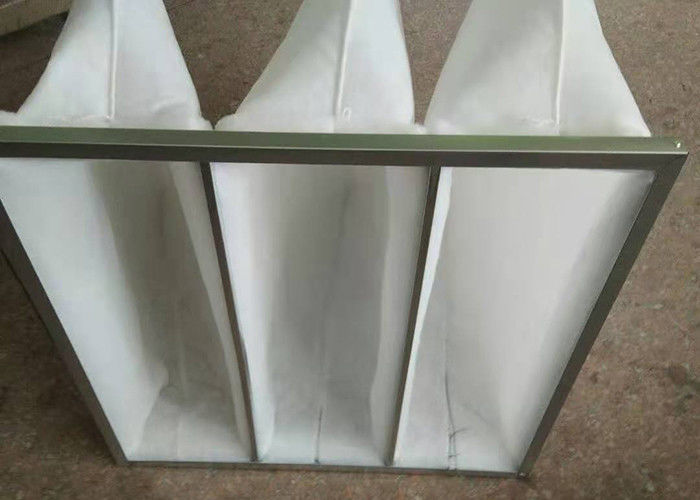

Simple Structure, Sturdy Pocket Air Filters
Product Description:
The filter materials mainly include composite non-woven fabrics, imported synthetic fibers and glass fibers. The filter bag is welded on three sides by ultrasonic welding technology and technology to form a separate ventilation channel to make the air flow evenly through, which greatly reduces the pressure of the overall filter bag and improves the service life of the filter bag. , The main efficiency levels of filter bags: 35% (G4), 45% (F5), 65% (F6), 85% (F7), 95% (F8), 98% (F9).
Product parameter:
|
Size (mm) |
Number of bags |
Filter area (m²) |
Rated air volume (m³/h) |
Efficiency class |
Initial resistance (Pa) |
Final resistance (Pa) |
|
287*592*550 |
3 |
1.86 |
1700 |
35%(G4) |
15 |
350 |
|
592*592*550 |
5 |
3.12 |
3400 |
20 |
||
|
592*592*600 |
6 |
3.78 |
3400 |
20 |
||
|
287*592*550 |
3 |
2.12 |
1700 |
45%(F5) |
20 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
30 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
30 |
||
|
287*592*550 |
3 |
2.12 |
1700 |
65%(F6) |
45 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
80 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
80 |
||
|
287*592*550 |
3 |
2.80 |
1700 |
85%(F7) |
100 |
400 |
|
592*592*550 |
5 |
4.78 |
3400 |
125 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
125 |
||
|
287*592*550 |
3 |
2.80 |
1700 |
95%(F8) |
110 |
450 |
|
592*592*550 |
5 |
4.78 |
3400 |
130 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
130 |
||
|
Minimum order quantity: 100 pcs. Supply capacity: 10,000 pcs/month. Delivery time: 24 hours |
||||||
Item Features:
A variety of specifications and models of bag filters are available for selection, using composite non-woven fabrics, imported synthetic fibers and glass fibers. The filter material contains electrostatic fiber, which has a good capture rate of micron dust, and the filtering effect is obvious.
FAQ:
1.Is Customized filter available?
Yes,please offer your required specifications and drawing
2.Can I get you products with our logo and design?
Yes, you can. Most of our products can be customized according to your requirements.
3.How can we get the quotation of filter cartridges ?
Please let us know the specifications, such as the materials, length, macron, apply in which industry etc.
4.Do you Accept OEM service?
YES!
5. Would it be possible for us to visit you factory?
Sure we are very welcome you at any time!
ent,compressor-turbine unit etc.
