| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 pcs/month |
| Size (mm): | 592*592*550 | Number Of Bags: | 5 |
|---|---|---|---|
| Filter Area (m²): | 3.66 | Rated Air Volume (m³/h): | 3400 |
| Initial Resistance (Pa): | 80 | Final Resistance (Pa): | 400 |
| High Light: | 65% Pocket Air Filters,F6 pocket air purifier,3400m3/h Pocket Air Filters |
||

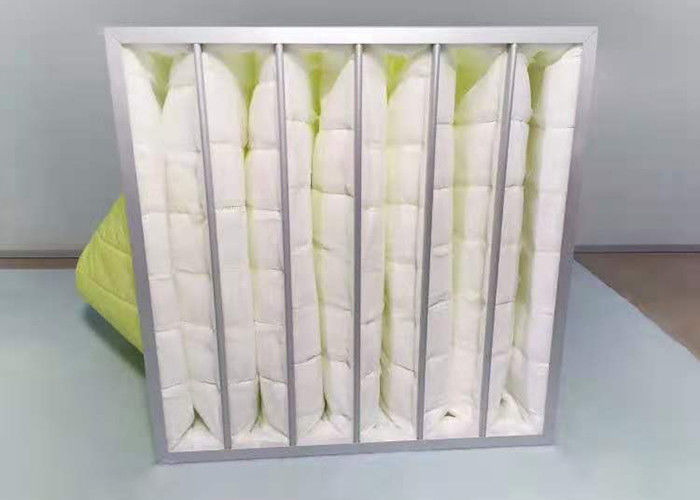

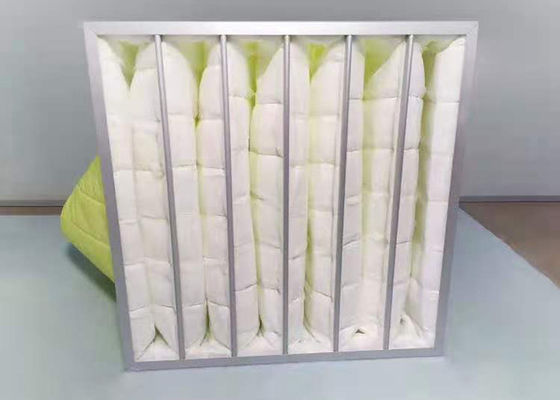

High Filtering Precision, Good Bactericidal Effect Pleated Panel Filter
Product Description:
Bag-type air filters are mainly used in air-conditioning systems and intermediate filtration of inlet filters of large air compressors. The outer frame is made of aluminum alloy profiles and galvanized sheets. The structure is simple and strong, and the detachable design is adopted to facilitate the replacement of the filter material and achieve the purpose of repeated use.
Product parameter:
|
Size (mm) |
Number of bags |
Filter area (m²) |
Rated air volume (m³/h) |
Efficiency class |
Initial resistance (Pa) |
Final resistance (Pa) |
|
287*592*550 |
3 |
1.86 |
1700 |
35%(G4) |
15 |
350 |
|
592*592*550 |
5 |
3.12 |
3400 |
20 |
||
|
592*592*600 |
6 |
3.78 |
3400 |
20 |
||
|
287*592*550 |
3 |
2.12 |
1700 |
45%(F5) |
20 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
30 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
30 |
||
|
287*592*550 |
3 |
2.12 |
1700 |
65%(F6) |
45 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
80 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
80 |
||
|
287*592*550 |
3 |
2.80 |
1700 |
85%(F7) |
100 |
400 |
|
592*592*550 |
5 |
4.78 |
3400 |
125 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
125 |
||
|
287*592*550 |
3 |
2.80 |
1700 |
95%(F8) |
110 |
450 |
|
592*592*550 |
5 |
4.78 |
3400 |
130 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
130 |
||
|
Minimum order quantity: 100 pcs. Supply capacity: 10,000 pcs/month. Delivery time: 24 hours |
||||||
Item Features:
The bag filter has the characteristics of large filtering area, large dust holding capacity, small resistance, large ventilation, etc. The frame and support frame can be reused. When replacing the filter, only the filter bag needs to be replaced, which is convenient and fast, which greatly reduces operation Cost.
FAQ:
1.Is Customized filter available?
Yes,please offer your required specifications and drawing
2.Can I get you products with our logo and design?
Yes, you can. Most of our products can be customized according to your requirements.
3.How can we get the quotation of filter cartridges ?
Please let us know the specifications, such as the materials, length, macron, apply in which industry etc.
4.Do you Accept OEM service?
YES!
5. Would it be possible for us to visit you factory?
Sure we are very welcome you at any time!
ent,compressor-turbine unit etc.
