| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Model Number: | DH3270 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 3 days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 pieces/month |
| Product Name: | Self-cleaning Air Filter Cartridge | Specification Model: | DH3270 |
|---|---|---|---|
| Dimensions (Mm) (Outer Diameter×Inner Diameter×Height): | Ø323×Ø215×700 | Filter Area (M²): | ≥18 |
| Filter Accuracy (μM): | ≥2 | Filter Level: | F9 |
| Rated Air Flow (M³/Min): | 14 | Initial Resistance (Pa): | ≤150 |
| High Light: | ISO9001 Industrial Air Filter Cartridge,F9 compressor air filter element,F9 Industrial Air Filter Cartridge |
||

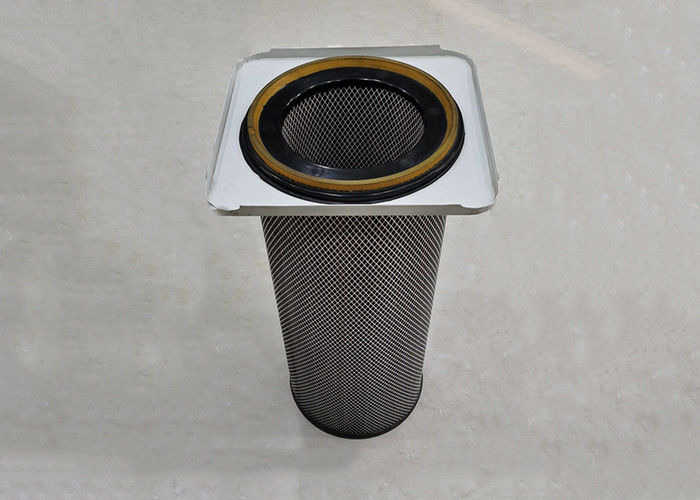

Good Sealing Effect Industrial Filter
Product Description:
The filtering accuracy of the filter cartridge can reach 1 um, and the filtering efficiency can reach 99.99%. Specification 100-700, height 200-2000 range. Product Description: Suitable for powder spraying, sand blasting, pigment industry, wood processing filtration.
Product parameter:
|
product name
|
Specification model
|
Dimensions (mm)
(Outer diameter×inner diameter×height)
|
Filter area (m²)
|
Filter accuracy (μm)
|
Filter level
|
Rated air flow
(M³/min)
|
Initial resistance (Pa) |
|
Self-cleaning air filter cartridge |
DH3266 | Ø323×Ø215×660 | ≥17 | ≥2 | F9 | 13 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3270 | Ø323×Ø215×700 | ≥18 | ≥2 | F9 | 14 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3290 | Ø323×Ø215×900 | ≥23 | ≥2 | F9 | 18 | ≤150 |
|
Self-cleaning air filter cartridge |
DH32100 | Ø323×Ø215×1000 | ≥26 | ≥2 | F9 | 20 | ≤150 |
Features:
1. It has good wear resistance and can withstand the pulse back-blowing of air flow better than the traditional filter material.
2. The filter material has good stiffness, and can be re-installed and used with low pressure water throat or detergent after cleaning and drying for many times.
3. The end cap and the central skeleton are galvanized parts, which are not rusty.
Applications:
1. Available for collectors: FT dust collector, Torit DFT
2. Substitute: Donaldson, Nodic, BHA
