| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Model Number: | DH32100 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 3 days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 pieces/month |
| Product Name: | Self-cleaning Air Filter Cartridge | Specification Model: | DH32100 |
|---|---|---|---|
| Dimensions (Mm) (Outer Diameter×Inner Diameter×Height): | Ø323×Ø215×1000 | Filter Area (M²): | ≥26 |
| Filter Accuracy (μM): | ≥2 | Filter Level: | F9 |
| Initial Resistance (Pa): | ≤150 | Rated Air Flow (M³/Min): | 20 |
| High Light: | F9 Industrial Air Filter Cartridge,2um industrial air cleaner,150Pa Industrial Air Filter Cartridge |
||

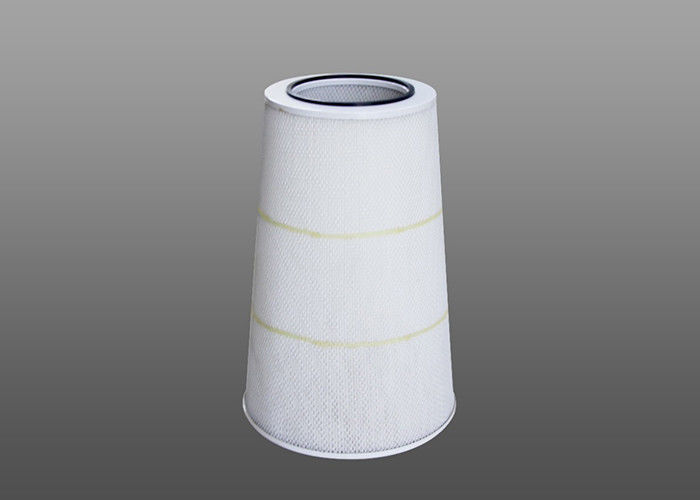

Refractory High Temperature Industrial Air Filter
Product Description:
The General specifications of filter cartridges are as follows: (325*660, 325*600, 325*705, 325*750, 350*660, 350*600, 350*705 350*900, 510*900, 408*660, 150*1000, 152*902, 350*1320, 178*2000) and so on.Drawings and samples can also be processed and produced according to customers'needs or samples.
Product parameter:
|
product name
|
Specification model
|
Dimensions (mm)
(Outer diameter×inner diameter×height)
|
Filter area (m²)
|
Filter accuracy (μm)
|
Filter level
|
Rated air flow
(M³/min)
|
Initial resistance (Pa) |
|
Self-cleaning air filter cartridge |
DH3266 | Ø323×Ø215×660 | ≥17 | ≥2 | F9 | 13 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3270 | Ø323×Ø215×700 | ≥18 | ≥2 | F9 | 14 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3290 | Ø323×Ø215×900 | ≥23 | ≥2 | F9 | 18 | ≤150 |
|
Self-cleaning air filter cartridge |
DH32100 | Ø323×Ø215×1000 | ≥26 | ≥2 | F9 | 20 | ≤150 |
Advantage:
1. Sealed closed-cell elastic chloroprene rubber
2. Use temperature 93-135 C.
3. Relative humidity 100%.
Features:
Glue is applied to the inside and outside of the filter material of the filter cartridge to fix the folds of the filter material to prevent deformation from affecting the air intake effect.
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.from.
