| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Model Number: | DH3290 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 3 days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 pieces/month |
| Product Name: | Self-cleaning Air Filter Cartridge | Specification Model: | DH3290 |
|---|---|---|---|
| Dimensions (Mm) (Outer Diameter×Inner Diameter×Height): | Ø323×Ø215×900 | Filter Area (M²): | ≥23 |
| Filter Accuracy (μM): | ≥2 | Filter Level: | F9 |
| Rated Air Flow (M³/Min): | 18 | Initial Resistance (Pa): | ≤150 |
| High Light: | 3um Air Cleaner Cartridge,190818 compressor air filter element,F9 Air Cleaner Cartridge |
||

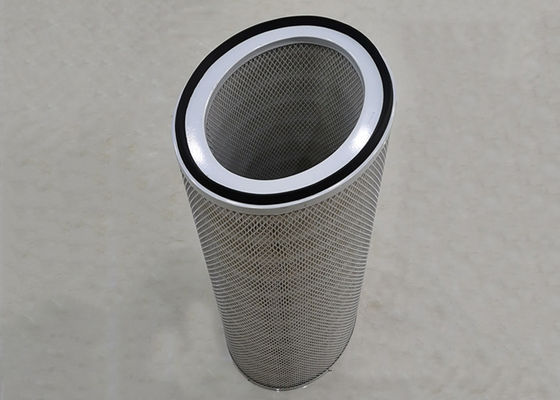

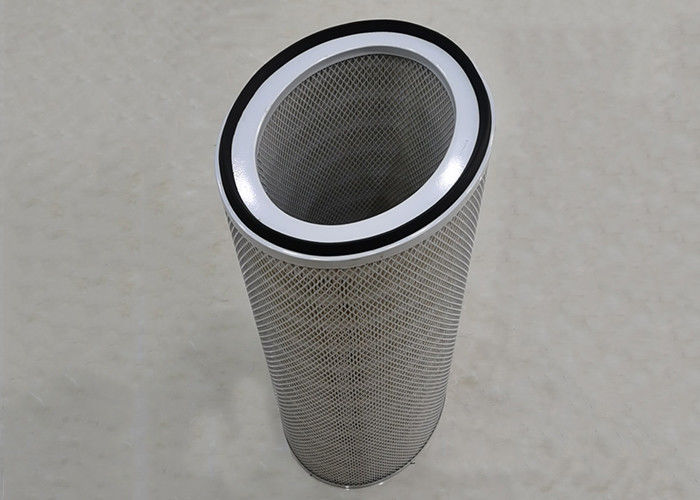

Industrial Fiberglass Dust Collector Air Filter Cartridge 190818
Product Description:
The product is mainly used for air filtration at the entrance of large air separation equipment. It has the characteristics of high filtration accuracy, good filtration efficiency, large dust holding capacity, and long service life. It is widely used in petroleum, chemical, steel, power plant and other industries.
Product parameter:
|
product name
|
Specification model
|
Dimensions (mm)
(Outer diameter×inner diameter×height)
|
Filter area (m²)
|
Filter accuracy (μm)
|
Filter level
|
Rated air flow
(M³/min)
|
Initial resistance (Pa) |
|
Self-cleaning air filter cartridge |
DH3266 | Ø323×Ø215×660 | ≥17 | ≥2 | F9 | 13 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3270 | Ø323×Ø215×700 | ≥18 | ≥2 | F9 | 14 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3290 | Ø323×Ø215×900 | ≥23 | ≥2 | F9 | 18 | ≤150 |
|
Self-cleaning air filter cartridge |
DH32100 | Ø323×Ø215×1000 | ≥26 | ≥2 | F9 | 20 | ≤150 |
Features:
(1) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.
(2) Excellent resistance to chemical erosion.
(3) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.
Applications:
1. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
2. Available for collectors: FT dust collector, Torit DFT
FAQ:
Q1. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q3.: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
