| Place of Origin: | Hebei china |
| Brand Name: | XINYUAN |
| Model Number: | R928005927 1.0250H10XL-A00-0-M |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in PP bag, inner carton, outer export carton or wooden box according to your requirements |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10,0000 sets per month |
| Place Of Origin: | Hebei, China | Power: | 300W |
|---|---|---|---|
| Weight: | 1.5kg | Size: | (outer Diameter) * (inner Diameter) * (height) Mm |
| Filter Material: | Glass Fiber, Filter Paper | Filter Element Type: | 1.0250H10XL-A00-0-M Hydraulic Filter Element |
| Material: | Glass Fiber, Filter Paper | MOQ: | 100 Pieces |
| High Light: | 1.0Mpa high pressure filter element,1.5kg hydraulic filter element,1.5kg high pressure filter element |
||

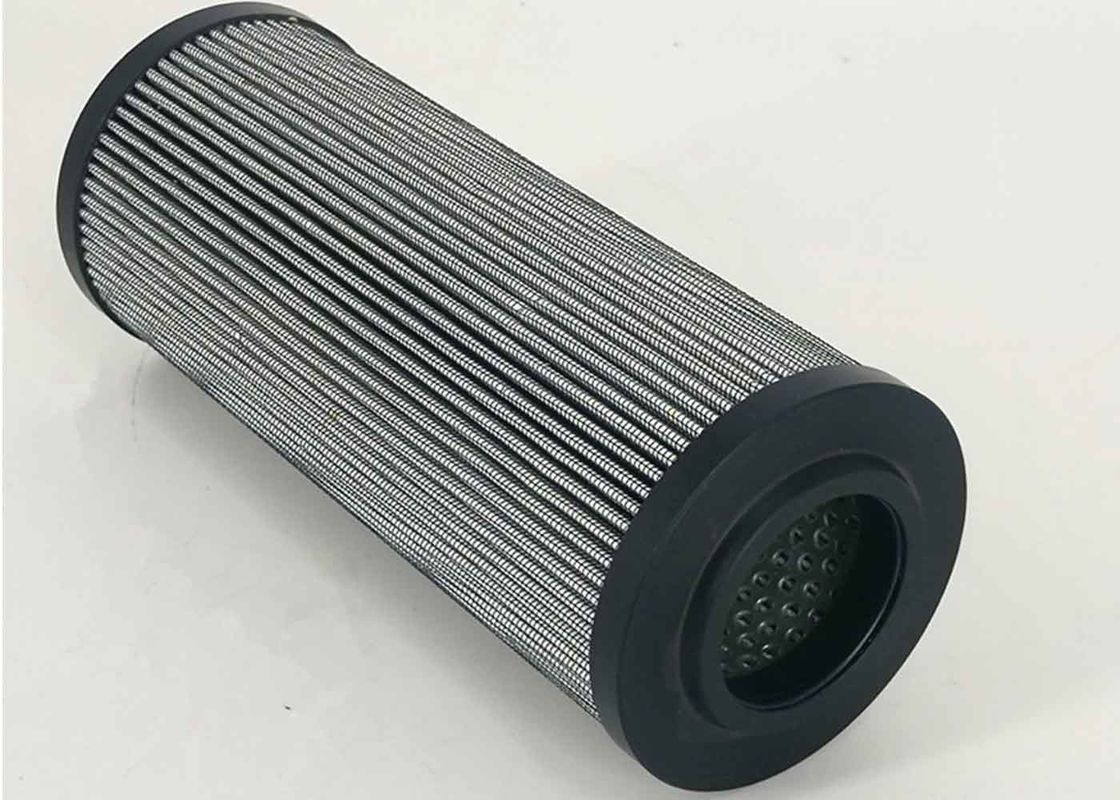

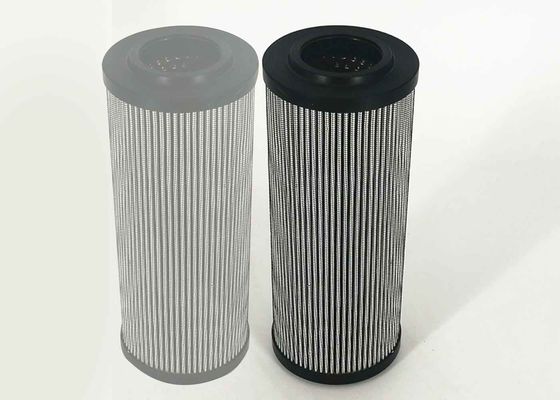

Filter oil 1.0250H glass fiber—hydraulic filter element
Product Features:
1. The filter element adopts glass fiber/stainless steel mesh imported from the United States. It has the advantages of convenient sewage discharge, large circulation area, small pressure loss, simple structure, small volume, light weight, uniform filter material, etc.
2. The filter has good compatibility and is suitable for general hydraulic oil filtration. 3. The filter element is supported by solid filter media on both sides and stable filter media, which meets the verification of the flow fatigue characteristics of ISO3724/76 hydraulic filters.
Filter material: Use high-quality glass fiber filter material Filter accuracy: from 1, 3, 6, 12, 25……M
Filtration ratio: X=100 Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
Scope of application: Used to filter oil in hydraulic and lubrication systems, remove pollutants in the system, and ensure the normal operation of the system. Test standard Filter crack resistance test according to ISO 2941 Filter element integrity according to ISO 2943 Filter element compatibility verification according to ISO 2943.
Supplementary attributes:
| Brand Name: | XINYUAN |
| Product name: | Filter oil 1.0250H glass fiber—hydraulic filter element |
| Application: | Used to filter oil in hydraulic and lubrication systems to remove contaminants in the system |
| Filter material: | glass fiber, filter paper |
| Working temperature: | -10 ~ +100℃ |
| Different working pressure: | 21bar ~ 210bar |
| Filtration accuracy: | 3-20 μm |
| Loading port: | Shanghai, Tianjin, Qingdao, others |
| Shipment: | Sea freight to the nearest port, air freight to the nearest airport |
| By express: | (DHL, UPS, FEDEX, TNT, EMS) home delivery |
