| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 3 days |
| Payment Terms: | T/T |
| Supply Ability: | 6000 pcs/month |
| Dimensions (mm): | 305*610*292 | Rated Air Flow (m³/*H): | 1000 |
|---|---|---|---|
| Filter Efficiency (0.3μm): | H13 99.99% | Initial Resistance (Pa): | ≤220 |
| Final Resistance (Pa): | ≤450 | Feature: | Acid And Alkali Corrosion Resistance |
| High Light: | H13 High Efficiency HEPA Air Filter,H13 Metal Filter Cartridge,99.99% High Efficiency HEPA Air Filter |
||

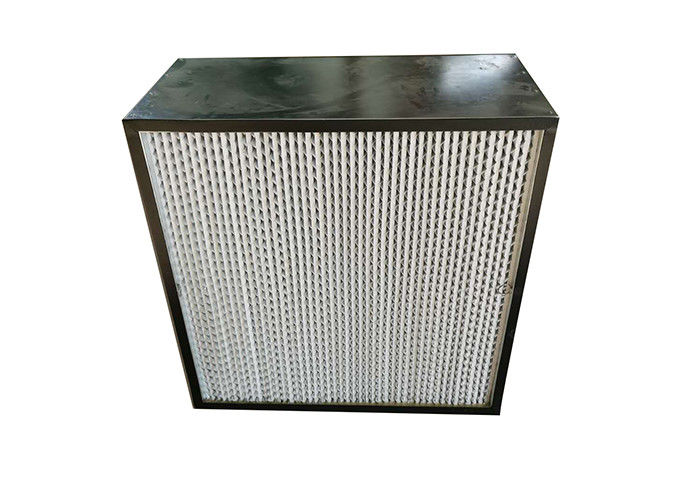

Galvanized Sheet Outer Frame HePA Filter
Product Description:
The W-type high-efficiency non-partition air filter adopts high-strength polypropylene injection molding frame, simple structure and easy installation. The glass fiber filter material has uniform pore size and high filtration accuracy. The surface of the filter material is folded and formed after the glue line is applied, which greatly increases the strength of the overall filter material to cope with the gradually increasing pressure on the filter surface. High elastic polyurethane sealing strip, good sealing performance, corrosion resistance and aging resistance.
Product parameter:
| Dimensions (mm) | Rated air flow (m³/*H) | Filter efficiency (0.3μm) | Initial resistance (Pa) | Final resistance (Pa) |
| 305*610*292 | 1000 |
H13 99.99% |
≤220 | ≤450 |
| 610*610*292 | 2000 | |||
| 305*610*150 | 600 | |||
| 610*610*150 | 1200 | |||
| 630*630*220 | 1500 | |||
| 484*484*220 | 1000 | |||
| 320*320*220 | 500 | |||
| Minimum order quantity: 50 pcs. Supply capacity: 6000 pcs/month. Delivery time: 3 days | ||||
Pictures:
Item Features:
1.The first domestic production of non-stitching mini pleat filter, which width up to 1500mm
2.Light weight, convenient installation and replacement
3.Stable efficiency and uniform velocity
4.100% factory inspection
Application:
HEPA filter: It widely used to the terminal filtration of the clean room.
ULPA filter: Work zone where require demanding clean class, like hospital operation room, laboratory, pharmaceutical room, electronics, optical fiber equipment and food processing factory etc.
FAQ:
1.Q:Are you trading company or manufacturer
A:We are manufacturing specialized in industrail air filter(filter cloth,filter bag,filter cartridge,air conditioner,filter cage,controller)etc.
2.Q:Can the product be customized?
A:Yes,both the product and the packaging can be customized.We offer OEM and ODM services.
3.Q:What's your packing?
A:Plastic/Carton,or according to your requirements.
4.What's is Minimun order quantity?
A:No strict principle for standard size,but 10pcs for non-standard dimensions or types.
5.What about the after-sales services?
A:Our company is responsible for the supplied product within usage life.
