| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 30,000 pcs/month |
| Series Name: | 20 Micron PP Pleated Filter Cartridge | Skeleton: | PP |
|---|---|---|---|
| The Inside Diameter Of: | Ø28 Ø30 | Length: | 10″20″30″40″ |
| Filter Material: | PP | Precision: | 1-100μm |
| Outer Diameter: | Ø60 Ø63 | Sealing Material: | Silica Gel, Oil Resistant Nitrile, Fluorine Rubber, |
| Operating Temperature: | ≤80℃ | Pressure Drop (Mpa): | 0.2 |
| High Light: | 20 Micron PP Pleated Filter Cartridge,20 Micron pleated water filter cartridge,99% PP Pleated Filter Cartridge |
||

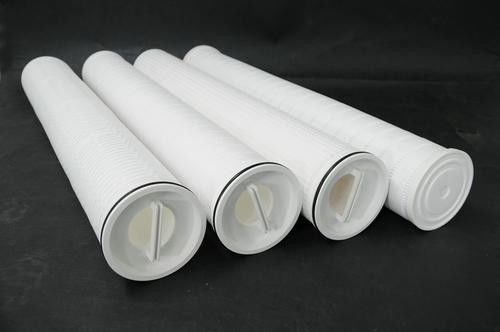

Pleated Polypropylene PP Sediment Water Filter Cartridge With 5 Micron 0.3 1 20 Micron Polypropylene Filters For Water Treatment
Product Description:
The deep filtration structure with gradual pore size outside and dense inside can effectively remove suspended solids, particles, rust and other impurities in the flowing liquid. The bridging phenomenon of particles occurs in the pores of the filter element, so that particles smaller than the pores can also be intercepted, and the effective filtration accuracy is above 99%.
Product parameter:
| Series name | Outer diameter | inside diameter | Length | Filter material | Skeleton | Precision | Sealing material | Operating temperature | Pressure drop (Mpa) |
|
PP melt blown filter element |
Ø60 Ø63 |
Ø28 Ø30 |
10″20″30″40″ | PP | PP | 1-100μm | ≤80℃ | 0.2 | |
| Microporous pleated filter element | Ø68 |
Ø28 Ø30 |
10″20″30″40″ |
PP, PP+ PTFE film, PP+PES film, |
PP, stainless steel |
0.1-50μm |
Silicone, oil-resistant nitrile, fluorine rubber, |
≤80℃ | 1.25 |
|
PALL high flow folding filter element |
Ø160 | Ø89 | 20″30″40″60″ | PP+ film | PP | 1-150μm | ≤80℃ | 0.42 | |
|
3M high flow filter element |
Ø160 | Ø77 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 0.42 | |
|
Parker high flow folding filter |
Ø152 | Ø100 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 3.4 | |
|
Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours |
|||||||||
Features and Benefits:
OD With 6 Inch/152mm, Inside To Outside Flow Configuration-All Contaminants Held Within The Single Open Ended Filter
Deep Pleated Configuration, And Excellent Filtration Efficiency, Making Huge Surface Area And Long Service Life Reduced Maintenance Costs.
Especially For High Flow Liquid Filtration: RO Pre-Filtration, Seawater Desalination, Cooling Water, Chemical Raw Materials, Beverage, Biopharmaceutical, Solvents And Filtration Of Water
Our main standard products include: High Flow Filter Cartridges, Pleated Cartridge Filters, Membrane Filter Cartridges, Melt Blown Filter Cartridges, String Wound Cartridges, Activated Carbon Cartridge Filters, Liquid Filter Bags & Filter Housings etc..
FAQ:
1.-Are you a trading company or manufacturer?
-Manufacturer with factory
2. What kind of product do you produce?
- Covers purifier filters, automotive filters, industrial filters, air filter materials.
3.-How many years did you do filter?
-We have more than 10 years making experience
4.-Is Customized filter available?
-Yes,please offer your required specifications and drawing
