| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 30,000 pcs/month |
| Series Name: | PP Melt Blown Filter Element | Skeleton: | PP |
|---|---|---|---|
| The Inside Diameter Of: | Ø28 Ø30 | Length: | 10″20″30″40″ |
| Filter Material: | PP | Precision: | 1-100μm |
| Outer Diameter: | Ø60 Ø63 | Sealing Material: | Silica Gel, Oil Resistant Nitrile, Fluorine Rubber, |
| Operating Temperature: | ≤80℃ | Pressure Drop (Mpa): | 0.2 |
| High Light: | 100um PP Pleated Filter Cartridge,100um pp filter cartridge,ISO9001 PP Pleated Filter Cartridge |
||

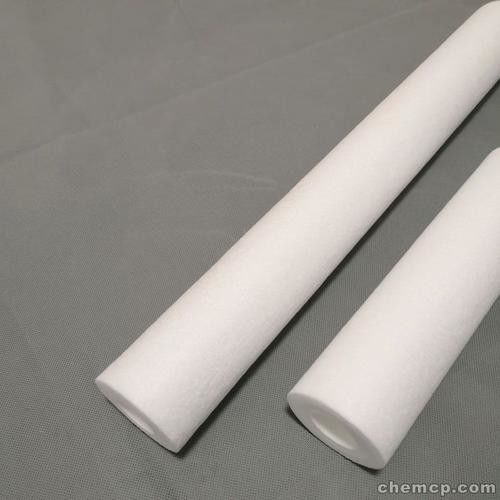

High Intensity PP Flame Filter Cartridge
Product Description:
Melt-blown non-woven fabric is a kind of ultrafine fiber non-woven material made by melt-blown process, raw material is food grade
PP, fibre diameter can be 0.5um-2um. The product is treated with special electrostatic, characteristics of high efficiency and low resistance, comfortable and easy to adorn.
Product parameter:
| Series name | Outer diameter | inside diameter | Length | Filter material | Skeleton | Precision | Sealing material | Operating temperature | Pressure drop (Mpa) |
|
PP melt blown filter element |
Ø60 Ø63 |
Ø28 Ø30 |
10″20″30″40″ | PP | PP | 1-100μm | ≤80℃ | 0.2 | |
| Microporous pleated filter element | Ø68 |
Ø28 Ø30 |
10″20″30″40″ |
PP, PP+ PTFE film, PP+PES film, |
PP, stainless steel |
0.1-50μm |
Silicone, oil-resistant nitrile, fluorine rubber, |
≤80℃ | 1.25 |
|
PALL high flow folding filter element |
Ø160 | Ø89 | 20″30″40″60″ | PP+ film | PP | 1-150μm | ≤80℃ | 0.42 | |
|
3M high flow filter element |
Ø160 | Ø77 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 0.42 | |
|
Parker high flow folding filter |
Ø152 | Ø100 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 3.4 | |
|
Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours |
|||||||||
Pictures:
1. High strength, small difference at longitudinal and longitudinal direction;
2. Acid, non-toxic, non-radiation, harmless to human
physiology;
3. With excellent breathability;
4. Master batch dying, never fade 5. Smooth, bright color, roll slitting, easy use,best quality.
