| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Model Number: | DH3290 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 3 days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 pieces/month |

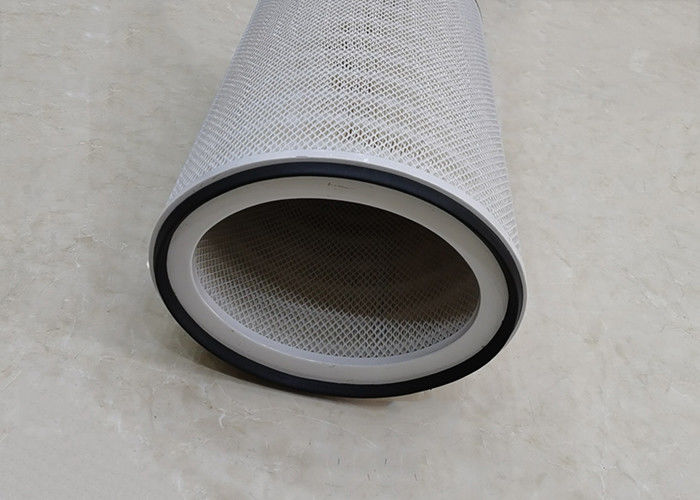

| Product Name: | Self-cleaning Air Filter Cartridge | Specification Model: | DH3290 |
|---|---|---|---|
| Dimensions (Mm) (Outer Diameter×Inner Diameter×Height): | Ø323×Ø215×900 | Filter Area (M²): | ≥23 |
| Filter Accuracy (μM): | ≥2 | Filter Level: | F9 |
| Rated Air Flow (M³/Min): | 18 | Initial Resistance (Pa): | ≤150 |
| High Light: | DH3290 Industrial Air Filter Cartridge,DH3290 Cartridge Filter Element,900mm Industrial Air Filter Cartridge |
||
Industrial Filter With Strong Humidity Resistance
Product Description:
The General specifications of filter cartridges are as follows: (325*660, 325*600, 325*705, 325*750, 350*660, 350*600, 350*705 350*900, 510*900, 408*660, 150*1000, 152*902, 350*1320, 178*2000) and so on.
Drawings and samples can also be processed and produced according to customers'needs or samples.
All-through/one-end bottom sealing/installation of medium holes (10-17mm).
Product parameter:
|
product name
|
Specification model
|
Dimensions (mm)
(Outer diameter×inner diameter×height)
|
Filter area (m²)
|
Filter accuracy (μm)
|
Filter level
|
Rated air flow
(M³/min)
|
Initial resistance (Pa) |
|
Self-cleaning air filter cartridge |
DH3266 | Ø323×Ø215×660 | ≥17 | ≥2 | F9 | 13 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3270 | Ø323×Ø215×700 | ≥18 | ≥2 | F9 | 14 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3290 | Ø323×Ø215×900 | ≥23 | ≥2 | F9 | 18 | ≤150 |
|
Self-cleaning air filter cartridge |
DH32100 | Ø323×Ø215×1000 | ≥26 | ≥2 | F9 | 20 | ≤150 |
Features:
It has strong force, uniform distribution and excellent filtration effect. Our company produces dust removal filter cartridge corrosion-resistant, pressure-resistant, pollution-absorbing ability, high filtering accuracy, strong adsorption, small blocking probability, high fire resistance.
FAQ:
Q1. Are you a factory and trading company?
A: We are a factory
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Can you suggst me a suitable type?
A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need
Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
