| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 pcs/month |
| Size (mm): | 287*592*550 | Number Of Bags: | 3 |
|---|---|---|---|
| Filter Area (m²): | 1.86 | Rated Air Volume (m³/h): | 1700 |
| Initial Resistance (Pa): | 15 | Final Resistance (Pa): | 350 |
| High Light: | Aluminum Alloy Frame Bag Air Filter,15Pa air filtration media,15Pa Bag Air Filter |
||

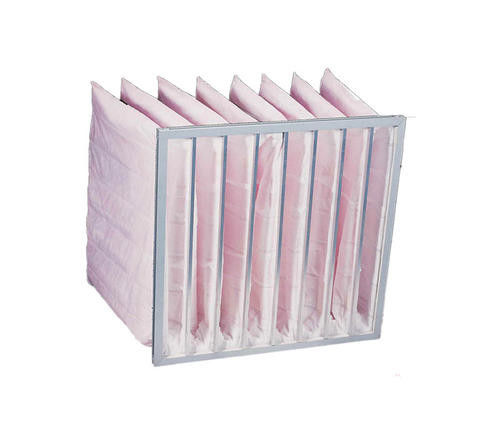

Aluminum Alloy Frame For Pocket Air Filters
Product Description:
The four sides of the filter bag are fused by ultrasonic and each filter bag is separated by a metal strip, which not only increases the strength, but also prevents the filter bag from breaking due to the wind-cut friction under high wind velocity condition.
Each filter bag has six separators evenly distributed in the bag in of over-expansion and mutual obstruction when under wind pressure. This structure increases the effective filter area and filtration efficiency.
Product parameter:
|
Size (mm) |
Number of bags |
Filter area (m²) |
Rated air volume (m³/h) |
Efficiency class |
Initial resistance (Pa) |
Final resistance (Pa) |
|
287*592*550 |
3 |
1.86 |
1700 |
35%(G4) |
15 |
350 |
|
592*592*550 |
5 |
3.12 |
3400 |
20 |
||
|
592*592*600 |
6 |
3.78 |
3400 |
20 |
||
|
287*592*550 |
3 |
2.12 |
1700 |
45%(F5) |
20 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
30 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
30 |
||
|
287*592*550 |
3 |
2.12 |
1700 |
65%(F6) |
45 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
80 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
80 |
||
|
287*592*550 |
3 |
2.80 |
1700 |
85%(F7) |
100 |
400 |
|
592*592*550 |
5 |
4.78 |
3400 |
125 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
125 |
||
|
287*592*550 |
3 |
2.80 |
1700 |
95%(F8) |
110 |
450 |
|
592*592*550 |
5 |
4.78 |
3400 |
130 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
130 |
||
|
Minimum order quantity: 100 pcs. Supply capacity: 10,000 pcs/month. Delivery time: 24 hours |
||||||
Product features:
Solid all-metal frame structure
High quality fluffy multi-layer synthetic fiber filter paper
High dust holding capacity, low resistance (300-400g/m2)
Ultrasonic seamless close-fitting bag structure
Application:
Bag filters are widely used in central air-conditioning ventilation systems, and air purification in pharmaceutical, hospital, electronics, airport, food, and other industries.
