| Place of Origin: | Hebei china |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 |
| Model Number: | SFAX-800*10 FAX-630*10 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in PP bag, inner carton, outer export carton or wooden box according to your requirements |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10,0000 sets per month |
| Specification: | SFAX-800*10 | Brand: | Xinyuanxin |
|---|---|---|---|
| Size: | Regular Size | Place Of Origin: | Gu'an County, Langfang City, Hebei Province |
| Model: | SFAX-800*10 FAX-630*10 | Certification: | ISO9001 |
| High Light: | 3um Hydraulic Oil Filter Element,ISO9001 Hydraulic Oil Filter Cartridge,30um Hydraulic Oil Filter Cartridge |
||

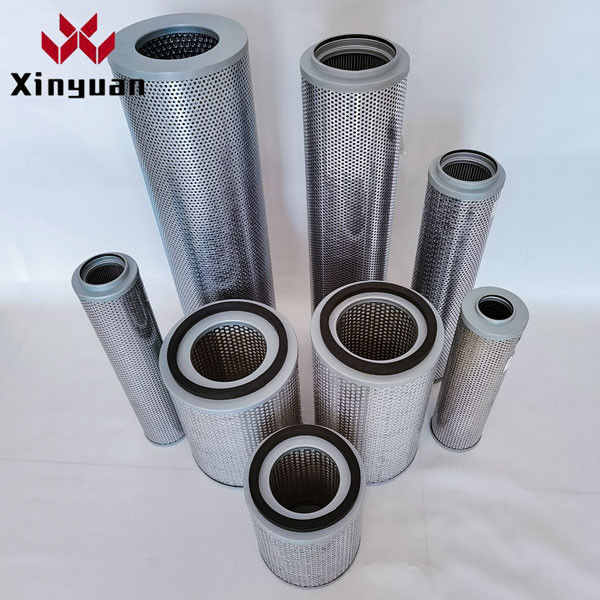

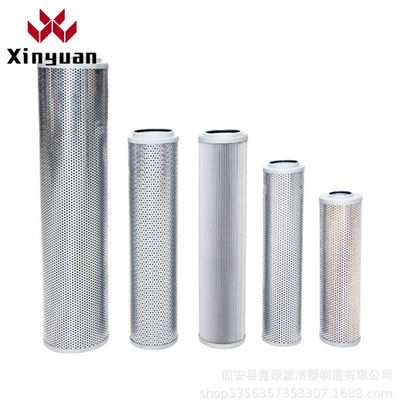

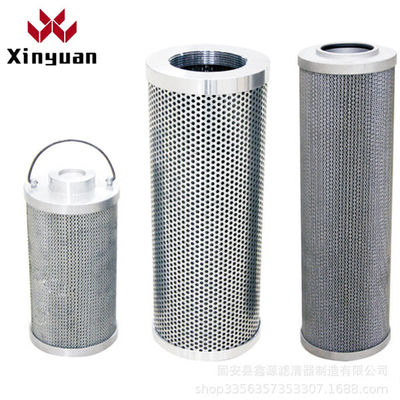

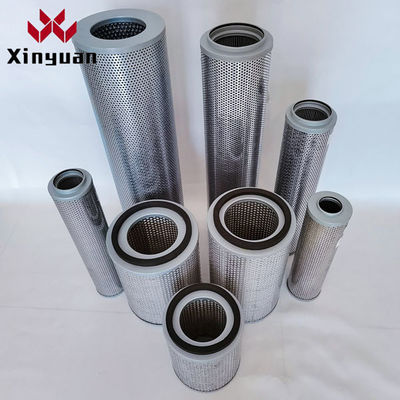

Hydraulic oil filter
Product description:
The hydraulic oil filter element is used to protect specific components in the hydraulic system. It is installed upstream of the components to be protected in the medium-pressure pipeline to filter out solid particles and colloidal substances in the working medium, effectively control the pollution degree of the working medium, and make The filter element with the normal working element.
Product Features/Advantages Features of hydraulic oil filter elements:
Good filtration performance, uniform surface filtration performance for filtration particle size of 2-200um; good corrosion resistance, heat resistance, pressure resistance, and abrasion resistance; stainless steel filter element with uniform pores and precise filtration accuracy; stainless steel filter element The flow rate per unit area is large; the stainless steel filter element is suitable for low temperature and high temperature environment; it can be used again after cleaning, without replacement.
Structural strength of hydraulic oil filter element:
(1) Axial stiffness: The filter element should not be deformed or damaged when it bears the axial load of the industry process document standard.
(2) Flattening stiffness: When the filter element is subjected to the ultimate pressure drop in the industry process document standard, it should not be deformed or damaged.
(3) Pressure drop and flow characteristics: The pressure drop and flow characteristics curve of the standard filter element shall be specified in the industrial process documents.
| Product name: | hydraulic oil filter element |
| Filtration accuracy: | 3～30μm (special accuracy can be customized) |
| Filter material: | glass fiber, metal mesh, etc. (Different filter materials are selected according to different precision requirements) |
| Normal working pressure (MAX): | 1.0MPa |
| Working medium: | general hydraulic oil, phosphate ester hydraulic oil, emulsion, water-glycol |
| Working temperature: | -30℃～ +110℃ |
