| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Model Number: | 130*800 |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 30,000 pcs/month |
| Specification Size (mm): | 130*800 | Installation Method: | Screw Hoisting,Quick Release Chuck |
|---|---|---|---|
| Filter Area (m²): | 6.8 | Handling Air Volume（m³/h）: | 450-800 |
| Quantitative Filter Material (g/m²): | 260 | Filtration Efficiency（≥0.2-10μm）: | 99.9% |
| High Light: | 6.8m2 Dust Collector Cartridge Filters,130mm Non Woven cartridge element,800mm Dust Collector Cartridge Filters |
||

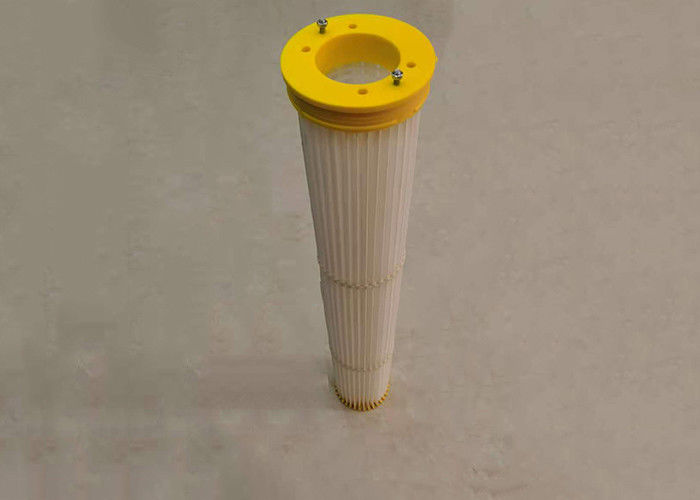

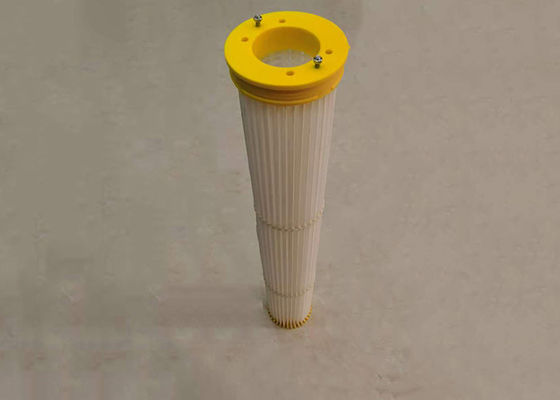

Toray Non-Woven Filter Cartridge Imported From Japan
Product Description:
The new technology diamond-shaped spiral occlusal support net, stainless steel round mesh plate spiral occlusal support net, the occlusal part forms a multi-layer combination, which has higher strength, prevents deformation and damage of the filter material, and increases the service life of the filter cartridge.
Product parameter:
| Product number | Specification size (mm) | Quantitative filter material (g/m²) | Filter area (m²) | Handling air volume | Filtration efficiency | Installation method |
| (m³/h) | (≥0.2-10μm) | |||||
| XY-3266 | 323*215*660 | 260 | 6.8 | 450-800 | 99.90% | Screw hoisting, |
| Quick release chuck | ||||||
| XY-32100 | 323*215*1000 | 260 | 12 | 700-1200 | 99.90% | |
| XY-120 | Ø120*900 | 260 | 0.81 | 150-300 | 99.90% | Flower board installation |
| Ø120*1000 | 260 | 0.9 | 180-320 | 99.90% | Flower board installation | |
| XY-160 | Ø160*2400 | 260 | 7.68 | 360-720 | 99.90% | Flower board installation |
| Ø160*3000 | 260 | 9.6 | 1140-2040 | 99.90% | Flower board installation | |
| XY-200 | Ø200*800 | 260 | 2.56 | 300-550 | 99.90% | Flower plate mouth hoisting |
| Ø200*1000 | 260 | 3.2 | 380-680 | 99.90% | Flower plate mouth hoisting | |
| Other standard specifications and various non-standard specifications can be customized | ||||||
| Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours | ||||||
Features:
Polyurethane casting end caps are easy to install and environmentally friendly. The end cover and the filter material are integrally formed, which is stronger and has better sealing performance to prevent dust leakage.
Application:
Mainly used in the field of industrial filtration, such as various filtration processes in power, cement, steel, non-ferrous metals, mining, and chemical industries.
FAQ:
Q1.Are you a factory and trading company?
A: We are a factory
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
