| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 30,000 pcs/month |
| Series Name: | PP Pleated Filter Cartridge | Outer Diameter: | Ø60 Ø63 |
|---|---|---|---|
| The Inside Diameter Of: | Ø28 Ø30 | Length: | 10″20″30″40″ |
| Filter Material: | PP | Skeleton: | PP |
| Precision: | 1-100μm | Sealing Material: | Silica Gel, Oil Resistant Nitrile, Fluorine Rubber, |
| Operating Temperature: | ≤80℃ | Pressure Drop (Mpa): | 0.2 |
| High Light: | 50um PP Pleated Filter Cartridge,50um pleated filter element,PES Film PP Pleated Filter Cartridge |
||
The Filter Pore Size Is Small Inside And Large Outside, With Good Deep Filtering Effect
Product Description:
PP microporous pleated filter element is made of polypropylene superfine fiber material after being folded and hot-melt bonded. It does not use any chemical adhesives, and integrates deep filtration and precision filtration. The deep filtration structure with sparse and dense pores on the outside can effectively remove suspended solids, particles, rust and other impurities in the flowing liquid.
Product parameter:
| Series name | Outer diameter | the inside diameter of | Length | Filter material | Skeleton | Precision | Sealing material | Operating temperature | Pressure drop (Mpa) |
| PP melt blown filter element |
Ø60 Ø63 |
Ø28 Ø30 |
10″20″30″40″ | PP | PP | 1-100μm | ≤80℃ | 0.2 | |
| Microporous pleated filter element | Ø68 |
Ø28 Ø30 |
10″20″30″40″ | PP, PP+ PTFE film, PP+PES film, GF (glass fiber) | PP, stainless steel | 0.1-50μm | Silica gel, Oil resistant nitrile, fluorine rubber, |
≤80℃ | 1.25 |
| PALL high flow folding filter element | Ø160 | Ø89 | 20″30″40″60″ | PP+ film | PP | 1-150μm | ≤80℃ | 0.42 | |
|
3M Large flow filter |
Ø160 | Ø77 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 0.42 | |
| Parker high-flow folding filter | Ø152 | Ø100 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 3.4 | |
| Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours | |||||||||

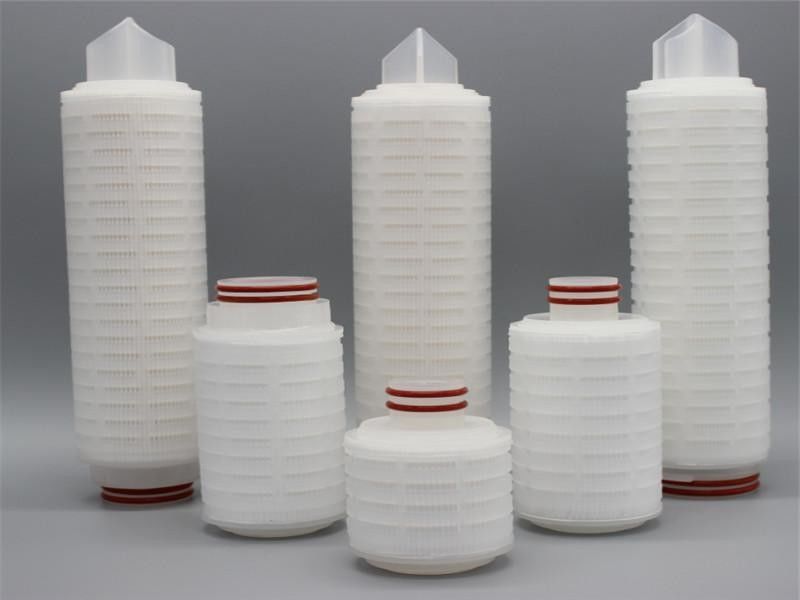

Pictures:
Item Features:
The pressure difference is small, the dirt holding capacity is strong, the filtration efficiency is high, and the life is long. The foldable filter element has high cleanliness, reduces water pollution, and is resistant to corrosion by chemical reagents such as acids and alkalis and organic solvents.
FAQ:
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: what's the material of your products?
1, National filter material:air paper /oil paper/fiber glass/stainless steel mesh/Stainless steel sintered,
2, Imported filter material: Fiber glass imported from HV company of USA.Oil paper imported from South Korea and ect.
3,End caps material: Carbon steel & stainless steel & Aluminum & Machined&Plastic.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
