| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Model Number: | XY-120 |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 30,000 pcs/month |
| Specification Size (mm): | Ø120*900 | Installation Method: | Screw Hoisting,Quick Release Chuck |
|---|---|---|---|
| Filter Area (m²): | 0.81 | Handling Air Volume（m³/h）: | 150-300 |
| Quantitative Filter Material (g/m²): | 260 | Filtration Efficiency（≥0.2-10μm）: | 99.9% |
| High Light: | 120mm Air Purifier Dust Collector,0.81m2 dust collector hepa filter,0.81m2 Air Purifier Dust Collector |
||

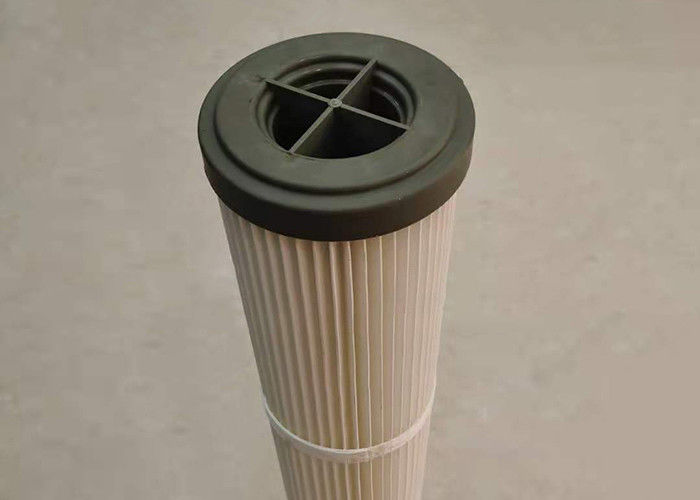

Oil Repellent, Moistureproof, Good Sealing Performance Filter Cartridge
Product Description:
High efficiency polyester air cartrdge filter
1.100% polyester filter media
2.Filter efficiency up to 99.99%
3.Integrated design. quick and easy installation,maintenance
4.Wide pleat depth
5.PTFE membrane,antistatic etc.
Product parameter:
| Product number | Specification size (mm) | Quantitative filter material (g/m²) | Filter area (m²) | Handling air volume | Filtration efficiency | Installation method |
| (m³/h) | (≥0.2-10μm) | |||||
| XY-3266 | 323*215*660 | 260 | 6.8 | 450-800 | 99.90% | Screw hoisting, |
| Quick release chuck | ||||||
| XY-32100 | 323*215*1000 | 260 | 12 | 700-1200 | 99.90% | |
| XY-120 | Ø120*900 | 260 | 0.81 | 150-300 | 99.90% | Flower board installation |
| Ø120*1000 | 260 | 0.9 | 180-320 | 99.90% | Flower board installation | |
| XY-160 | Ø160*2400 | 260 | 7.68 | 360-720 | 99.90% | Flower board installation |
| Ø160*3000 | 260 | 9.6 | 1140-2040 | 99.90% | Flower board installation | |
| XY-200 | Ø200*800 | 260 | 2.56 | 300-550 | 99.90% | Flower plate mouth hoisting |
| Ø200*1000 | 260 | 3.2 | 380-680 | 99.90% | Flower plate mouth hoisting | |
| Other standard specifications and various non-standard specifications can be customized | ||||||
| Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours | ||||||
Features:
1.To maintain maximum filtering surface, pleats are held in place with hot melt spiral beading inside and outside.
2.It is most important that the power industry fit their gas turbine with the best air filtration systems & elements available on the market.
Application:
Mainly used in the field of industrial filtration, such as various filtration processes in power, cement, steel, non-ferrous metals, mining, and chemical industries.
FAQ:
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q3: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
