| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Model Number: | DH3290 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 3 days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 pieces/month |
| Product Name: | Self-cleaning Air Filter Cartridge | Specification Model: | DH3290 |
|---|---|---|---|
| Dimensions (Mm) (Outer Diameter×Inner Diameter×Height): | Ø323×Ø215×900 | Filter Area (M²): | ≥23 |
| Filter Accuracy (μM): | ≥2 | Filter Level: | F9 |
| Rated Air Flow (M³/Min): | 18 | Initial Resistance (Pa): | ≤150 |
| High Light: | F9 Industrial Air Filter Cartridge,2um air purifier air filters,23m2 Industrial Air Filter Cartridge |
||

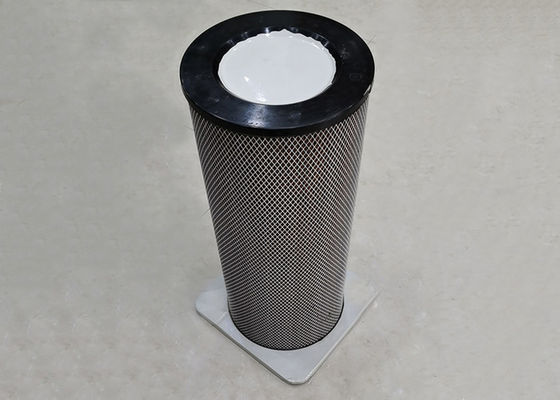

Industrial Polyester Pleated Air Filter Cartridge
Product Description:
The filter cartridge is made of high-quality domestic filter paper or imported filter paper from HV Company (customer choice). The metal parts such as the inner and outer support protection nets and end caps are surface treated with a plastic spray process to ensure that they will not rust or corrode for a long time. Glue is applied to the inside and outside of the filter material of the filter cartridge to fix the folds of the filter material to prevent deformation from affecting the air intake effect.
Product parameter:
|
product name
|
Specification model
|
Dimensions (mm)
(Outer diameter×inner diameter×height)
|
Filter area (m²)
|
Filter accuracy (μm)
|
Filter level
|
Rated air flow
(M³/min)
|
Initial resistance (Pa) |
|
Self-cleaning air filter cartridge |
DH3266 | Ø323×Ø215×660 | ≥17 | ≥2 | F9 | 13 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3270 | Ø323×Ø215×700 | ≥18 | ≥2 | F9 | 14 | ≤150 |
|
Self-cleaning air filter cartridge |
DH3290 | Ø323×Ø215×900 | ≥23 | ≥2 | F9 | 18 | ≤150 |
|
Self-cleaning air filter cartridge |
DH32100 | Ø323×Ø215×1000 | ≥26 | ≥2 | F9 | 20 | ≤150 |
The product is mainly used for air filtration at the entrance of large air separation equipment. It has the characteristics of high filtration accuracy, good filtration efficiency, large dust holding capacity, and long service life. It is widely used in petroleum, chemical, steel, power plant and other industries.
FAQ:
Q1. Are you a factory and trading company?
A: We are a factory
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Can you suggst me a suitable type?
A: Certainly, Once you give me the keyword. The most suitable size will be choose to meet your need
Q4. How about your delivery time?
A: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
