| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 3 days |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 units per month |
| Dimensions (W×H×D) (mm): | 595×595×21 | Rated Air Volume (m3/h): | 1700 |
|---|---|---|---|
| Filter Area(m2): | 0．64 | Dust Holding Capacity (g): | 115 |
| Initial Resistance (Pa): | 45 | Final Resistance （Pa）: | 100-200 |
| High Light: | G2 Pleated Panel Filters,G2 Pleated Primary Filter,ISO9001 Pleated Panel Filters |
||

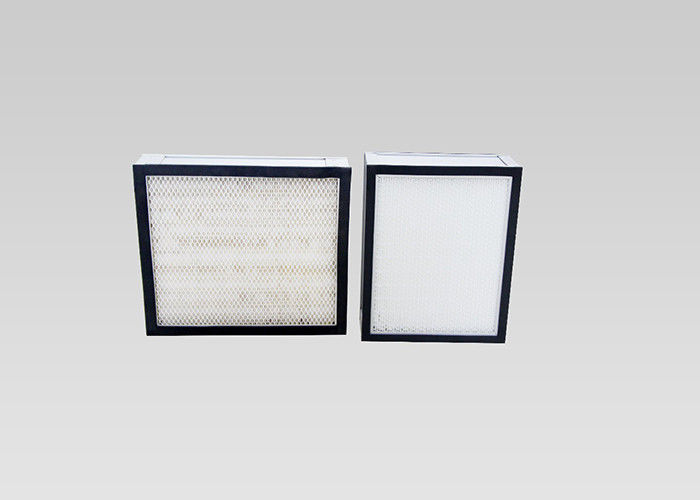

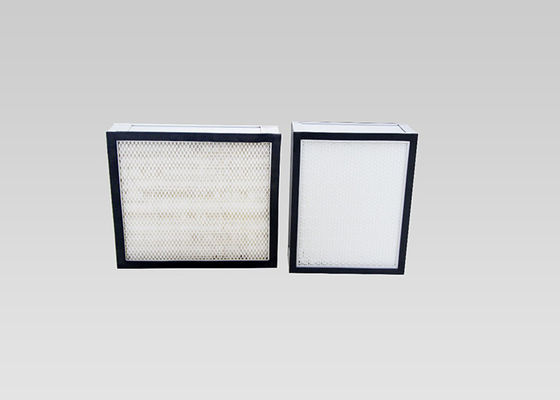

High Quality Polyester Synthetic Fiber Folding Panel Filter
Product Description:
The high-efficiency HEPA air filter adopts imported glass fiber and chemical fiber materials to be folded into shape, and the surface is coated with glue line technology to fix the paper folding without deformation. Stainless steel, aluminum alloy, cold-rolled sheet folding and other materials frame.
Product parameter:
|
Dimensions (W×H×D) (mm) |
Rated air volume (m3/h) |
Filter area(m2) |
Dust holding capacity (g) |
Initial resistance (Pa) |
Final resistance (Pa) |
Filtration efficiency(0.3μm) |
|
595×595×21 |
1700 |
0．64 |
115 |
45 |
100-200 |
G1-G4 |
|
595×495×21 |
1400 |
0．53 |
95 |
45 |
100-200 |
|
|
295×295×21 |
400 |
0．16 |
25 |
45 |
100-200 |
|
|
595×595×46 |
2500 |
0．95 |
170 |
45 |
100-200 |
|
|
595×495×46 |
2100 |
0．78 |
140 |
45 |
100-200 |
|
|
295×595×46 |
1200 |
0．46 |
80 |
45 |
100-200 |
|
|
295×495×46 |
1000 |
0．38 |
65 |
45 |
100-200 |
|
|
295×295×46 |
600 |
0．24 |
40 |
45 |
100-200 |
|
|
Minimum order quantity: 100 pcs. Supply capacity: 10,000 pcs/month. Delivery time: 3 days |
||||||
Pleated panel filters are mainly used in:
The perfect combination of medium-efficiency activated carbon particle filter and high-efficiency HEPA filter, which integrates filtration and sterilization, has high filtration accuracy and good sterilization effect. It is mainly used in air conditioning systems.
Item Features:
Coarse-efficiency aluminum mesh filter, stainless steel woven mesh filter, the filter material adopts aluminum diamond mesh or stainless steel wire woven mesh multi-layer folding, which has the characteristics of corrosion resistance and high temperature resistance. Mainly used for coarse filtration of air.
FAQ:
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q: Are you a trading company or manufacturer?
A: We are professional manufacturer with factory in China.
Q: What kinds of filter do you produce?
A: It covers widely for air filter,oil filter,fuel filter for trucks, construction machinery, power plant equipment,compressor-turbine unit etc.
