| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 30,000 pcs/month |
| Series Name: | PP Melt Blown Filter Element | Skeleton: | PP |
|---|---|---|---|
| The Inside Diameter Of: | Ø28 Ø30 | Length: | 10″20″30″40″ |
| Filter Material: | PP | Precision: | 1-100μm |
| Outer Diameter: | Ø60 Ø63 | Sealing Material: | Silica Gel, Oil Resistant Nitrile, Fluorine Rubber, |
| Operating Temperature: | ≤80℃ | Pressure Drop (Mpa): | 0.2 |
| High Light: | Sanitary 5 Micron Polypropylene Filter Cartridge,ISO 30″ polypropylene water filter,ISO 5 Micron Polypropylene Filter Cartridge |
||

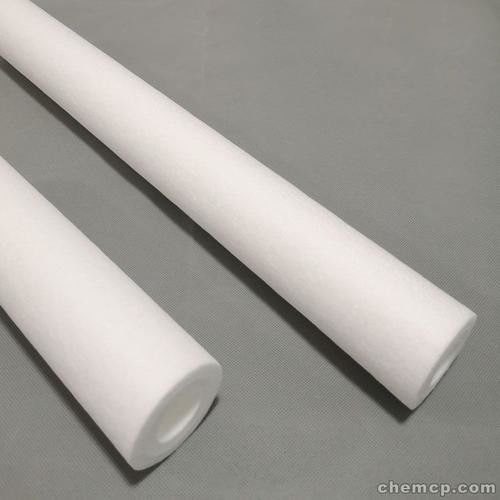

Sanitary And Safe PP Food Filter Cartridge
Product Description:
As the fiber and density form high filtration rating and pollutants holding capacity on diameter of filter cartridge, low pressure drop, gradual changing deep filtration structure with loose outside and close inner, strong pollutants holding capacity, it can remove contaminant effectively, such as suspended substance, particulate and rust, providing efficient filtration and long service life.
Product parameter:
| Series name | Outer diameter | inside diameter | Length | Filter material | Skeleton | Precision | Sealing material | Operating temperature | Pressure drop (Mpa) |
|
PP melt blown filter element |
Ø60 Ø63 |
Ø28 Ø30 |
10″20″30″40″ | PP | PP | 1-100μm | ≤80℃ | 0.2 | |
| Microporous pleated filter element | Ø68 |
Ø28 Ø30 |
10″20″30″40″ |
PP, PP+ PTFE film, PP+PES film, |
PP, stainless steel |
0.1-50μm |
Silicone, oil-resistant nitrile, fluorine rubber, |
≤80℃ | 1.25 |
|
PALL high flow folding filter element |
Ø160 | Ø89 | 20″30″40″60″ | PP+ film | PP | 1-150μm | ≤80℃ | 0.42 | |
|
3M high flow filter element |
Ø160 | Ø77 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 0.42 | |
|
Parker high flow folding filter |
Ø152 | Ø100 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 3.4 | |
|
Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours |
|||||||||
Pictures:
1. High strength, small difference at longitudinal and longitudinal direction;
2. Acid, non-toxic, non-radiation, harmless to human
physiology;
3. With excellent breathability;
4. Master batch dying, never fade 5. Smooth, bright color, roll slitting, easy use,best quality.
FAQ:
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: what's the material of your products?
1, National filter material:air paper /oil paper/fiber glass/stainless steel mesh/Stainless steel sintered,
2, Imported filter material: Fiber glass imported from HV company of USA.Oil paper imported from South Korea and ect.
3,End caps material: Carbon steel & stainless steel & Aluminum & Machined&Plastic.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 50% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
