| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 pcs/month |
| Size (mm): | 592*592*550 | Number Of Bags: | 5 |
|---|---|---|---|
| Filter Area (m²): | 3.66 | Rated Air Volume (m³/h): | 3400 |
| Initial Resistance (Pa): | 80 | Final Resistance (Pa): | 400 |
| High Light: | 80Pa Air Conditioner Filter Media,80Pa Bag Air Filter,100pcs Air Conditioner Filter Media |
||

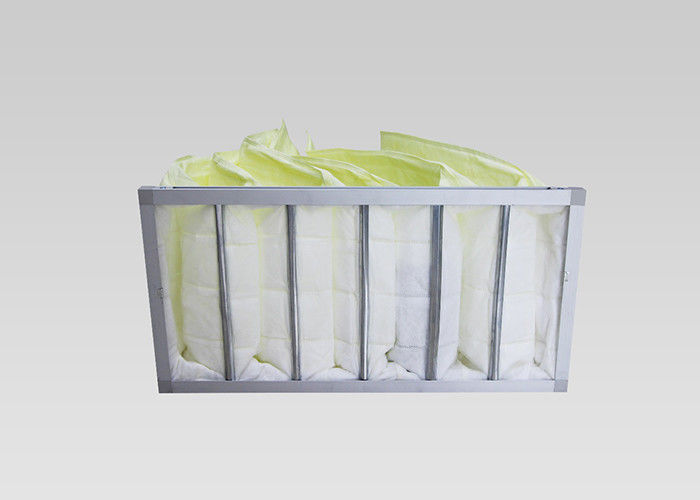

Fiberglass Pocket Air Filters
Product Description:
The diamond-shaped surface mesh design first intercepts larger particles and debris to protect the integrity of the filter bag. Greatly increase the service life of the filter. The surface mesh is made of carbon steel galvanized and stainless steel. It can be selected according to site requirements.
Product parameter:
|
Size (mm) |
Number of bags |
Filter area (m²) |
Rated air volume (m³/h) |
Efficiency class |
Initial resistance (Pa) |
Final resistance (Pa) |
|
287*592*550 |
3 |
1.86 |
1700 |
35%(G4) |
15 |
350 |
|
592*592*550 |
5 |
3.12 |
3400 |
20 |
||
|
592*592*600 |
6 |
3.78 |
3400 |
20 |
||
|
287*592*550 |
3 |
2.12 |
1700 |
45%(F5) |
20 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
30 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
30 |
||
|
287*592*550 |
3 |
2.12 |
1700 |
65%(F6) |
45 |
400 |
|
592*592*550 |
5 |
3.66 |
3400 |
80 |
||
|
592*592*600 |
6 |
4.40 |
3400 |
80 |
||
|
287*592*550 |
3 |
2.80 |
1700 |
85%(F7) |
100 |
400 |
|
592*592*550 |
5 |
4.78 |
3400 |
125 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
125 |
||
|
287*592*550 |
3 |
2.80 |
1700 |
95%(F8) |
110 |
450 |
|
592*592*550 |
5 |
4.78 |
3400 |
130 |
||
|
592*592*600 |
6 |
5.78 |
3400 |
130 |
||
|
Minimum order quantity: 100 pcs. Supply capacity: 10,000 pcs/month. Delivery time: 24 hours |
||||||
Features:
High elastic polyurethane sealing strip, smooth and flat, good sealing, corrosion resistance and aging resistance.
Application:
Suitable for the electronics, bio-pharmaceutical, machinery, instrumentation, petrochemical and light industry as general air purification systems.
FAQ:
Q: Can the product be customized?
A:Yes, both the product and the packaging can be customized.
Q: How to pay?
A:Our company accepts various ways of payment, such as T/T , Paypal, Western Union etc.
Q: How long is the order lead time?
A:It depends on the order quantity. Usually it takes about 7 to 10 days for sample order and about 15-30 days for bulk order.
Q: What's your after-sales service?
A:Free online Technology Services 24h hours.
