| Place of Origin: | Langfang City, Hebei Province, China |
| Brand Name: | XINYUAN |
| Certification: | ISO9001 quality management system certification |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Regular paper packaging. Depending on the model, the packaging will vary. |
| Delivery Time: | 24 hours |
| Payment Terms: | T/T |
| Supply Ability: | 30,000 pcs/month |
| Series Name: | Wire Wound Filter Cartridge | Skeleton: | PP |
|---|---|---|---|
| The Inside Diameter Of: | Ø28 Ø30 | Length: | 10″20″30″40″ |
| Filter Material: | PP | Precision: | 1-100μm |
| Outer Diameter: | Ø60 Ø63 | Sealing Material: | Silica Gel, Oil Resistant Nitrile, Fluorine Rubber, |
| Operating Temperature: | ≤80℃ | Pressure Drop (Mpa): | 0.2 |
| High Light: | 1um Wire Wound Filter Cartridge,1um string wound sediment filter,ISO9001 Wire Wound Filter Cartridge |
||

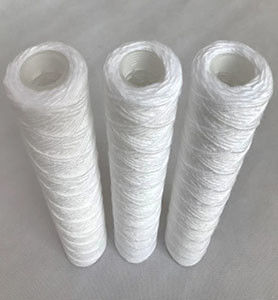

Used For Liquid Filter Wire-Wound Filter Elements In Various Water Treatment Systems
Product Description:
The main advantage of the string wound filter cartridge is its exceptionally high structural strength there for, they can withstand higher PSID and severe operating conditions. Large void volume design for low-cost, reliable filtration performance with high contaminant holding capacity.
Product parameter:
| Series name | Outer diameter | inside diameter | Length | Filter material | Skeleton | Precision | Sealing material | Operating temperature | Pressure drop (Mpa) |
|
PP melt blown filter element |
Ø60 |
Ø28 |
10″20″30″40″ | PP | PP | 1-100μm | ≤80℃ | 0.2 | |
| Microporous pleated filter element | Ø68 |
Ø28 |
10″20″30″40″ |
PP, PP+ PTFE film, PP+PES film, |
PP, stainless steel |
0.1-50μm |
Silicone, oil-resistant nitrile, fluorine rubber, |
≤80℃ | 1.25 |
|
PALL high flow folding filter element |
Ø160 | Ø89 | 20″30″40″60″ | PP+ film | PP | 1-150μm | ≤80℃ | 0.42 | |
|
3M high flow filter element |
Ø160 | Ø77 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 0.42 | |
|
Parker high flow folding filter |
Ø152 | Ø100 | 20″30″40″60″ | PP | PP | 1-100μm | ≤80℃ | 3.4 | |
|
Minimum order quantity: 100 pcs. Supply capacity: 30,000 pcs/month. Delivery time: 24 hours |
|||||||||
Pictures:
Product Features:
PP String Wound filter cartridge consists of a core winded tightly with PP textile fibre in order to form filters that may vary in filtration precision, according to the density of the string during winding. This type of filter can remove the suspended particles in liquids. Pure Life String Woud filters provide high quality depth filtration. It can also be manufactured by many types of material in order to meet different needs or types of liquids.
FAQ:
Q: Are you a manufacturer?
A: Yes, we have our own factory.
Q: Do you support OEM made?
A: OEM is warmly welcomed, we can arrange your own color or label,print your OEM package,and make your own shape according to your drawing.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
